Picosecond Impulse Forming Network and Bias Tee

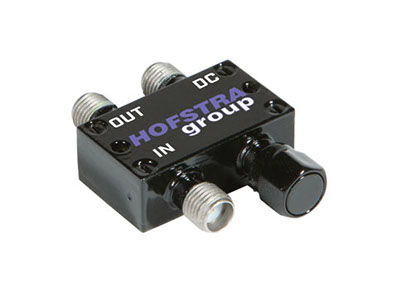

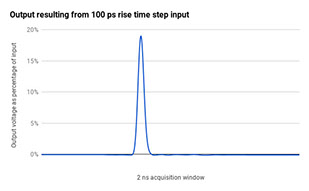

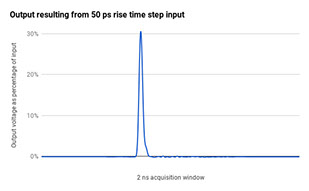

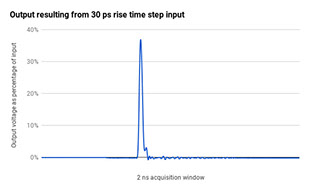

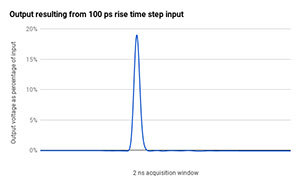

The 4204 Impulse Forming Network (IFN) differentiates fast voltage steps into picosecond impulses in a single compact and reliable module. With an integrated DC bias injection port, the 4204 IFN is perfectly suited for driving and biasing diode lasers.

applications

Gain-switched diode lasers
Ultra wideband (UWB) radar
Impulse response testing

compatibility

Designed to work seamlessly with Picosecond Pulse Labs/Tektronix Pulse Generators 2600C, 10050A, 10300B, 10060A, 10070A
