In-Line High Voltage Picosecond Divider Probe

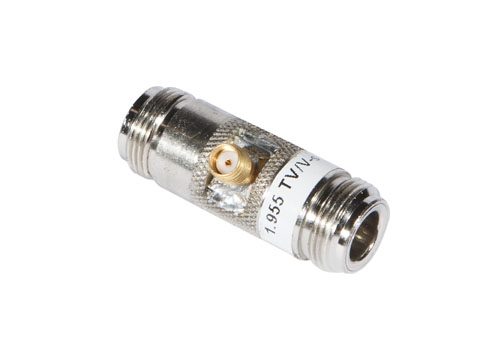

The 4177 in-line high voltage picosecond divider probe is used for measuring challenging high speed waveforms. Unlike attenuators, this probe picks off a small part of the high voltage waveform while allowing the rest to pass through undistorted. As a V-dot sensor (D-dot with fixed geometry), probe output is proportional to the time derivative of the probed signal and must be integrated to recover the sensed voltage.



Includes

  • In-line high voltage picosecond divider probe
  • Calibration data

CONTACT

JOIN US

ABOUT US

PRICE: $971.00

Applications

  • Monitoring high power UWB radar
  • Impulse Radiating Antenna testing
  • Impulse radar
  • Characterizing high voltage pulse generators
  • Monitoring Pockels cells
  • Gated image intensifiers
  • Streak cameras

Specifications

Nominal capacitive voltage division ratio (TV/V·s)

2

Maximum Voltage

4 kV

Rise Time

25 picoseconds

Output Connector

SMA

HV Connector

N

Price

$971
